Introduction to Flow Measuring Devices in Chemical Industry
Flow measuring devices play a crucial role in the chemical industry. Accurate measurement of flow is essential for process control and optimization. Various flow measuring devices are used in the chemical industry to meet specific requirements.	Image Source
		1

Positive Displacement Flow Meters
Positive displacement flow meters measure flow by dividing the fluid into discrete volumes. They are highly accurate and suitable for measuring viscous fluids. Common types include rotary piston, oval gear, and nutating disc flow meters.	Image Source
		2

Turbine Flow Meters

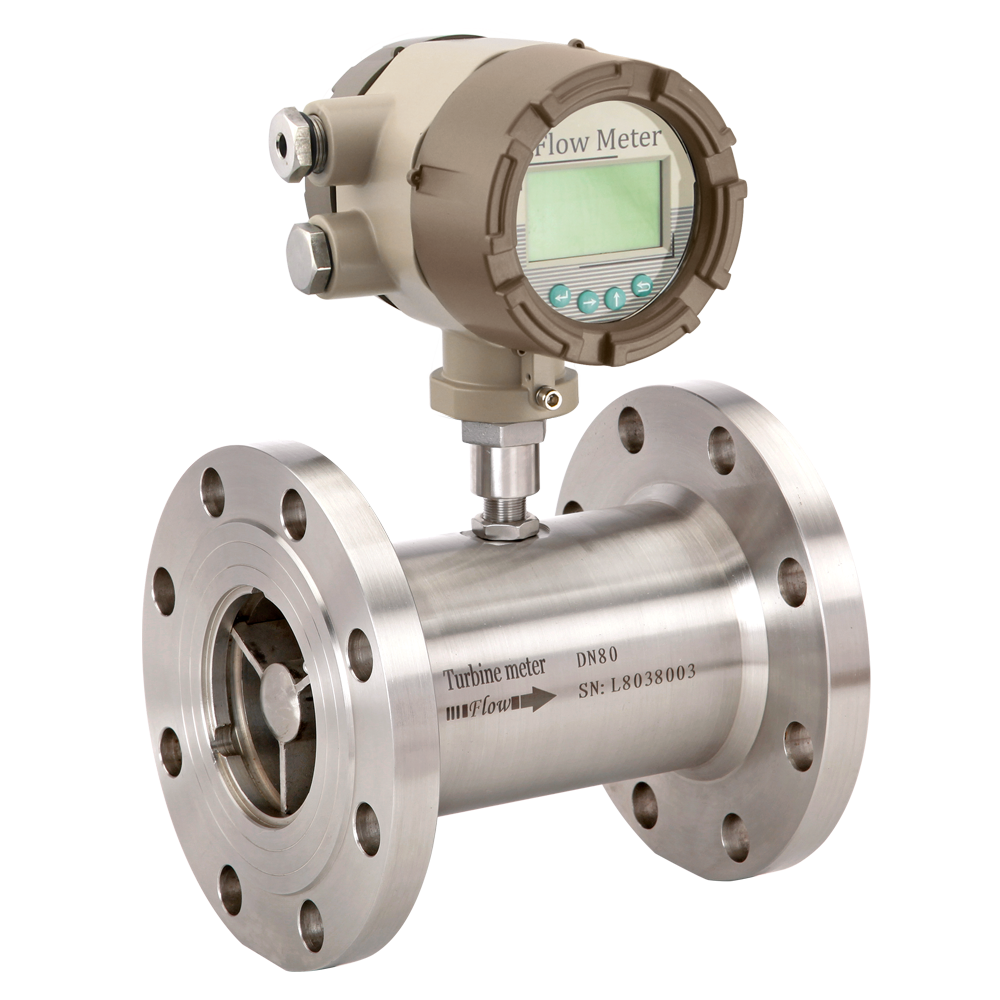

Turbine flow meters utilize a rotor with blades that spin in response to fluid flow. They are suitable for measuring clean and low-viscosity fluids. Turbine flow meters offer high accuracy and a wide flow range.	Image Source
		3

Magnetic Flow Meters
Magnetic flow meters use Faraday's law of electromagnetic induction to measure flow. They are ideal for measuring conductive fluids, including corrosive chemicals. Magnetic flow meters offer high accuracy and are not affected by changes in fluid density.	Image Source
		4

Ultrasonic Flow Meters
Ultrasonic flow meters measure flow by transmitting and receiving ultrasonic signals. They are non-intrusive and suitable for a wide range of fluids. Ultrasonic flow meters provide accurate measurements and are often used in large pipelines.	Image Source
		5

Coriolis Flow Meters
Coriolis flow meters measure flow based on the Coriolis effect. They are highly accurate and can measure mass flow directly. Coriolis flow meters are suitable for measuring both liquids and gases.	Image Source
		6

Vortex Flow Meters
Vortex flow meters measure flow by detecting the vortices created by fluid passing through an obstruction. They are suitable for a wide range of fluids and offer good accuracy. Vortex flow meters are widely used in the chemical industry for process control.	Image Source
		7

Summary and Key Takeaways
Flow measuring devices are essential for accurate measurement and control in the chemical industry. Different types of flow meters are available to meet specific requirements. Choosing the right flow measuring device depends on factors such as fluid properties, accuracy requirements, and installation conditions.	Image Source
